3" IM2.5 Suspension Lift Kit | Toyota 4Runner (2010-2024) with KDSS
SKU: TOY065KM-KDSS
Precision Valving
Monotube Design
Ride Height Adjustable
Need Help? Click Here
$1,939.00
$2,449.00
$1,939.00
Required Products
Warranty
Backed by our warranty policy
Free Shipping
On orders over $99 (certain restrictions apply)
There are required products for this item. .
Kit Items
Stage Options for Toyota 4Runner w/ KDSS
Load Options
Product Information
Overview
Designed to deliver an unparalleled suspension upgrade for your vehicle's comfort and on/off-road capability. IM2.5 features advanced monotube technology, precision valving, and superior heat dissipation to enhance stability, control, and driver confidence in any condition. Built for:
- Performance enthusiasts
- Light and heavily loaded trucks and SUVs
- Daily driven trucks and SUVs

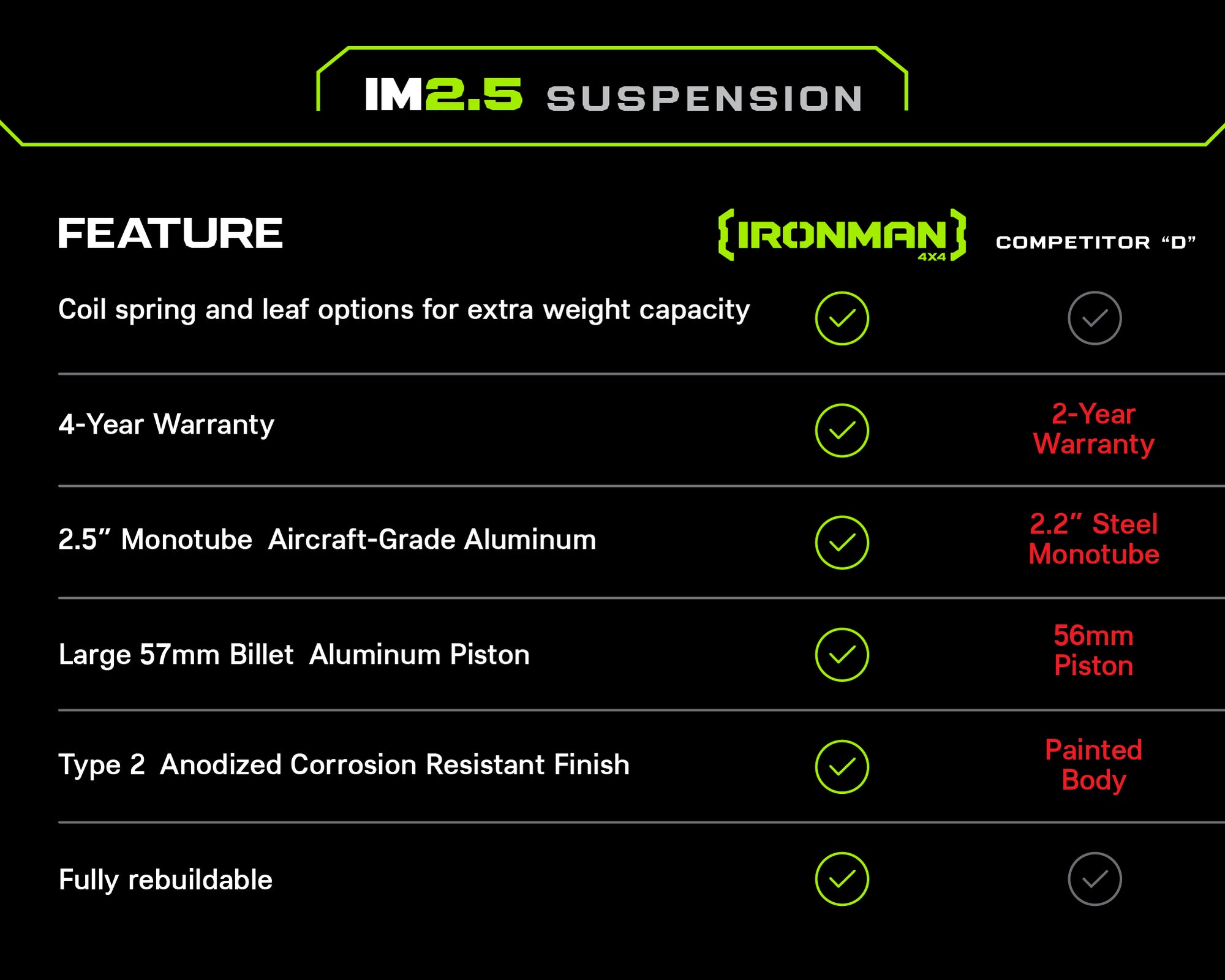

Features:
2.5" Monotube Aircraft-Grade Aluminum Construction: The 2.5" extruded monotube body is made from 6061-T6 aircraft-grade lightweight aluminum, offering up to 4x better heat dissipation and 30% weight saving than steel for enhanced durability and cooling efficiency.
Large 57mm Billet Aluminum Piston: The CNC-machined billet aluminum piston offers 60% more surface area than traditional designs, enabling precise valve tuning for exceptional ride comfort and control.
Premium Build Materials: High-pressure (200PSI) nitrogen gas, NOK seals, and Fuchs hydraulic oil contribute to long-lasting durability and high-performance under extreme conditions.
Velocity-Sensitive Design: The monotube damper adjusts seamlessly to changing terrain, providing a plush, smooth ride on highways and responsiveness on rugged trails.
Type 2 Anodized Corrosion Resistant Finish: Military grade anodized corrosion resistant finish withstands harsh weather, mud, and road grime for extended durability and reliability.
Double-Bonded Natural Rubber Bushings: Built with double-bonded natural rubber bushings for superior durability and resistance to weather and environmental elements, offering hassle-free performance and reliability.
Adjustable Coilover System: Equipped with an Acme-threaded body, the IM2.5 allows for infinite tuning of the ride height to suit different loads and driving scenarios.
Covered for the Unexpected: Backed by IRONMAN 4X4’s 4-year unlimited-mileage warranty, —unlikely to be needed thanks to the IM2.5's legendary durability, but there just in case the unexpected finds you.
Unmatched Durability and Longevity: The IM2.5 Monotube Suspension is engineered for unmatched durability and longevity, eliminating the need for regular servicing required by comparable shocks, thanks to its advanced design and premium materials—though fully rebuildable, it's built to perform flawlessly without maintenance.
Stage 1 Includes:
- Front IM2.5 Coilovers
- Rear Adjustable Panhard Bar KDSS Compatible
- Rear Sway Bar Relocation Brackets KDSS Compatible
- Rear IM2.5 Shocks
- Rear Coil Springs
- Rear Bump Stop Spacer Kit
Stage 2 Includes:
- Stage 1 Components
- Pro Forge Upper Control Arms
Stage 3 Includes:
- Stage 1 & 2 Components
- Rear Adjustable Lower Trailing Arms
